Add mobile alerting to any system with SIGNL4 webhooks

S4alert_1

 Why SIGNL4

The SIGNL4 webhook allows you to send events to your SIGNL4 team from external systems or applications. The base URL of the webhook is https://connect.signl4.com/webhook/. Other than the SIGNL4 API, authentication is based on an API key which is encoded in the request URI and matches your SIGNL4 team secret such as https://connect.signl4.com/webhook/{teamSecret}.

 Integration Capabilities

  • Forwards event data to Enterprise Alert for mobile alerting
  • Staff can acknowledge and take ownership for critical incidents that occur
  • Communicate within an alert to address a problem
  • Alerts are escalated in case of no response
  • On-call scheduling to alert the right people at the right time

 Scenarios

  • Network Monitoring
  • Database Monitoring
  • Server Monitoring
  • Application Monitoring
  • Ticket Escalation
  • And much more!

How To Integrate

Integrating SIGNL4 with Webhooks

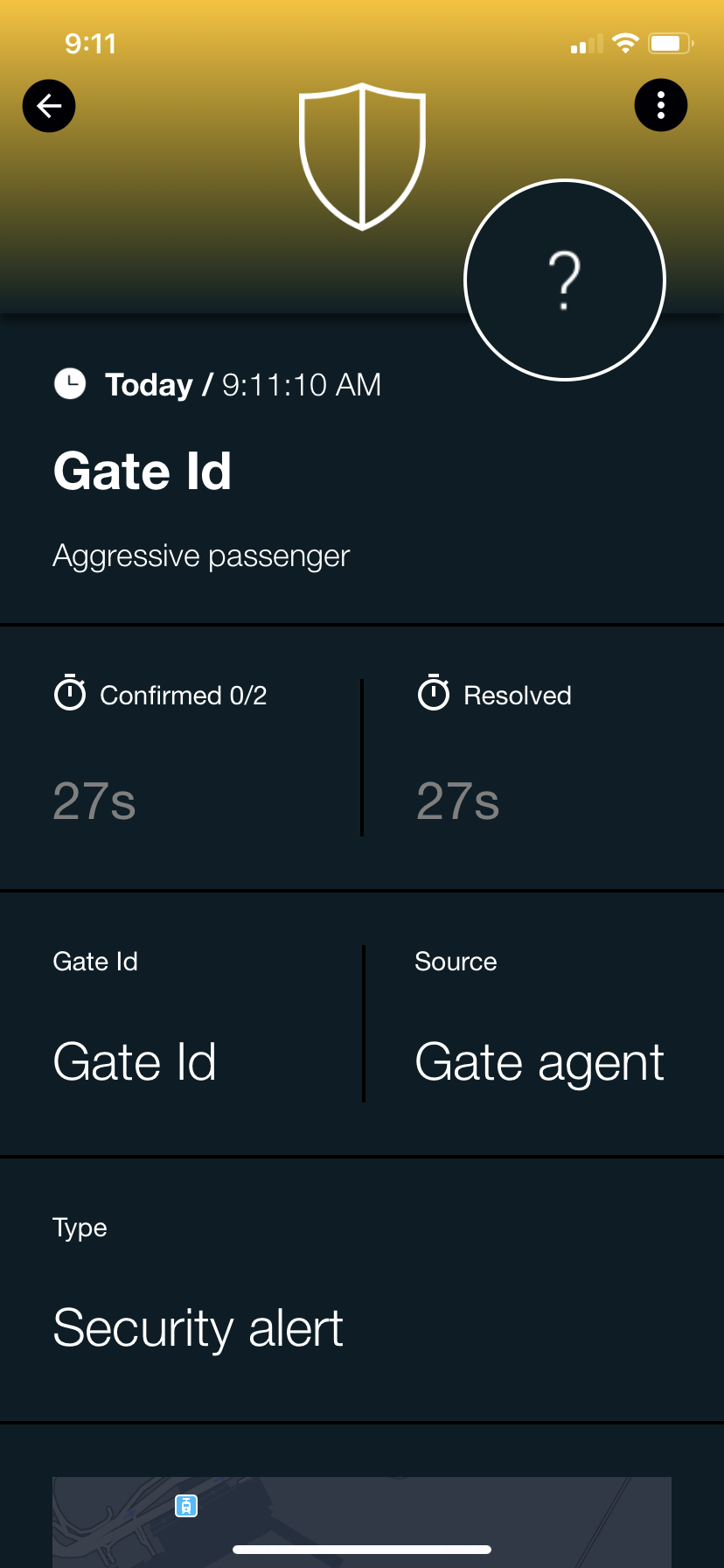

In our example we are using the Raise Event API to send event data to SIGNL4.  These parameters will be parsed and separated automatically in the mobile app and with the use of SIGNL4 special parameters we will be able to trigger specific categories, specify a location and trigger a specific acknowledgement type.

Integration Steps

The payload that we will pass through will be:

{
“Gate Id”: “Gate Id”
“Message”: “Aggressive passenger”,
“Source”: “Gate agent”,
“Type”: “Security alert”,
“X-S4-Service”: “Security”,
“X-S4-Location”: “40.6413111,-73.7781391”,
“X-S4-AlertingScenario”: “multi_ack”,
“X-S4-ExternalID”: “INC091210”
}

The following parameters will enrich your Signl or to influence its processing as follows:

X-S4-Service
: Assigns the Signl to the service/system category with the specified name.

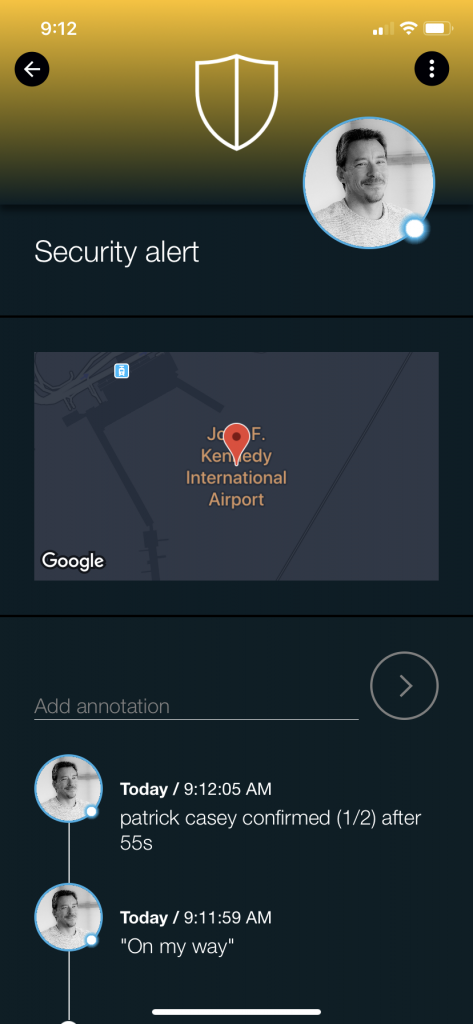

X-S4-Location: Transmit location information (‘latitude, longitude’) with your event and display a map in the mobile app.

X-S4-AlertingScenario: Pass ‘single_ack’ if only one persons needs to confirm this Signl. Pass ‘multi_ack’ in case this alert must be confirmed by the number of people who are on duty at the time this Singl is raised.

X-S4-ExternalID: If the event originates from a record in a 3rd party system, use this parameter to pass the unique ID of that record. That ID will be communicated in outbound webhook notifications from SIGNL4, which is great for correlation/synchronization of that record with the Signl.

X-S4-Filtering: Specify a boolean value of true or false to apply event filtering for this event, or not. If set to true, the event will only trigger a notification to the team, if it contains at least one keyword from one of your services and system categories (i.e. it is whitelisted).

X-S4-Status: Updates the status of an existing alert event. Please note that the parameter “X-S4-ExternalID” must be the same as for the initial request that opened the alert. The parameter “X-S4-Status” must be “resolved” to close the alert. If the parameter “X-S4-Status” is present and neither “new” nor “resolved” the event gets discarded. This is useful if you would like to ignore updates.

You can try these steps out at the following URL:

https://connect.signl4.com/webhook/docs/index.html

  1. Open the description by clicking the “POST” button
  2. Enter in Your Team Secret
  3. Enter in the event data
  4. Click “Try it Out”



In June 2020 we introduce the ability to use the webhook to update the status of an alert from the originating 3rd party system. Read more here: https://www.signl4.com/blog/update-july-2020-resolve-alerts/

Alert Optimization

SIGNL4 can further increase the visibility of alerts through its Signals and Services section.  Augmenting the color and icon of alerts will provide more relevant information at a glance without having to open the alert.

Change Alert Color and Override Title + Text

Override text, colors and titles are triggered by keywords set within the mobile app.
