The integration of SIGNL4 with Hilscher enables production staff and service technicians to be alerted quickly and reliably when problems are detected or even before problems arise, no matter where they are.
Production managers have no time to check the dashboards of each and every machine on the shop floor. Therefore it is important to get a notification if some machine needs attention. This gives time to take care of the actual tasks and provided peace of mind, because you are actively alerted when necessary.
How it Works
SIGNL4 alerts teams and on-call teams on their mobile devices when disruptions in production are detected. Persistent notifications and acknowledgement requirements ensure that issues will be handled before it is too late.
The integration of Hilscher with SIGNL4 can be done via different interfaces, for example via email or webhooks. Here we show the integration using webhooks and Node-RED.
SIGNL4 receives critical information from Hilscher
Event categorization, routing and automated delivery
Persistent Notifications by push, text and voice call with Tracking, Escalation and Confirmation to Staff on Duty
HOW TO INTEGRATE

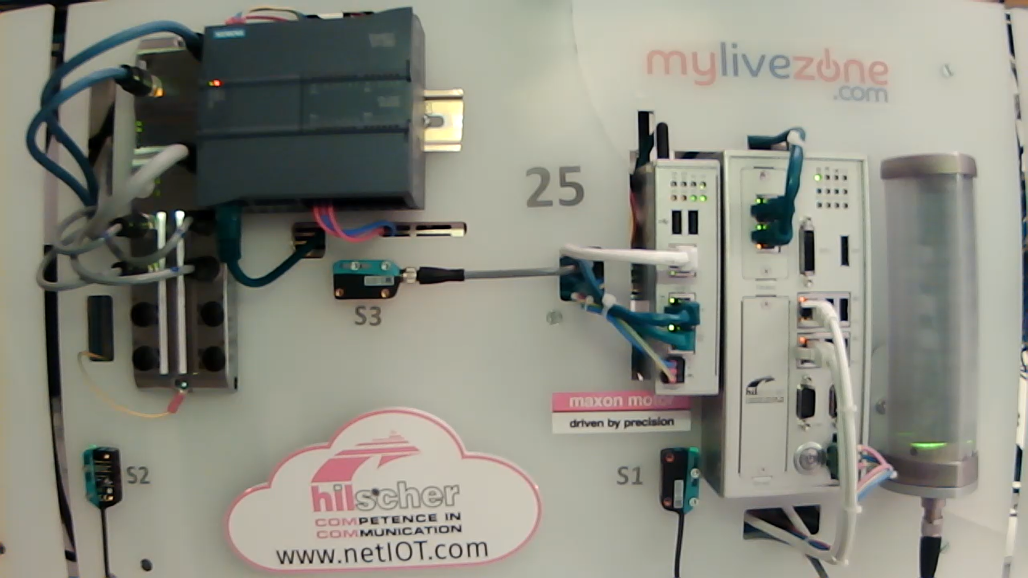

In our example, we use a demo setup that consists of several components and covers the entire range from sensor to user alerting.

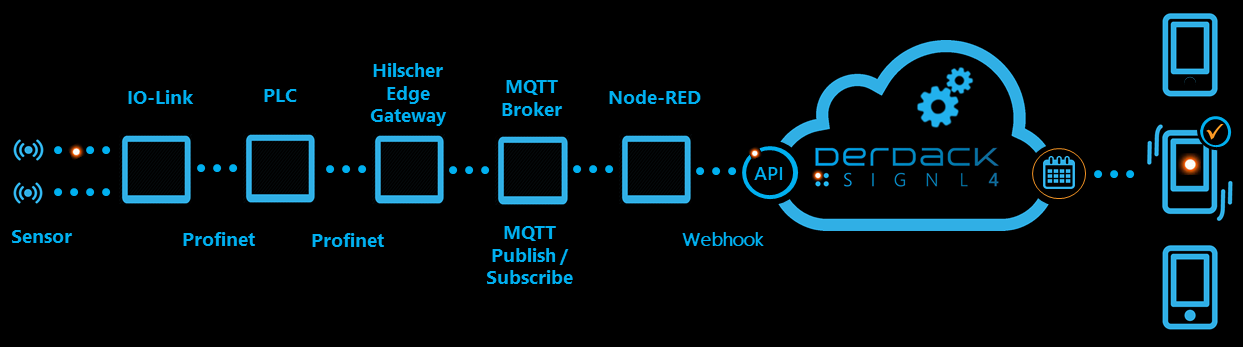

A distance sensor is connected via IO-Link to an IO-Link Master, then the data is received from a PLC and from there it goes into the Hilscher Edge Gateway. Then an MQTT Broker is used to transfer the data to Node-RED. The Node-RED flow then checks the alerting conditions and then used the SIGNL4 node to send the alert to the SIGNL4 team (or close the alert when resolved).

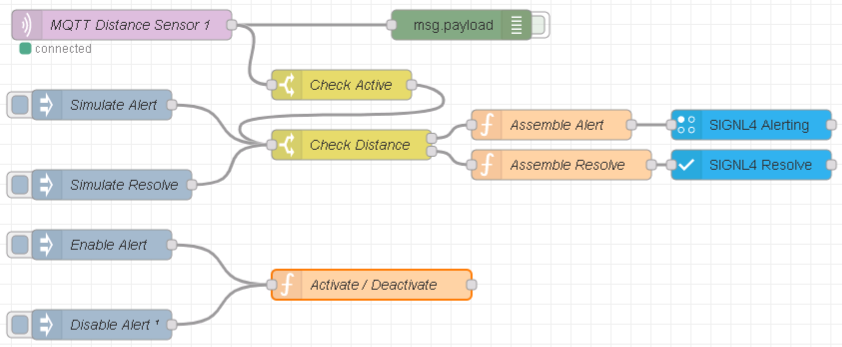

The Node-RED sample flow gets the sensor data via MQTT and then sends (or closes) the alert using the SIGNL4 nodes.
The flow is available here.

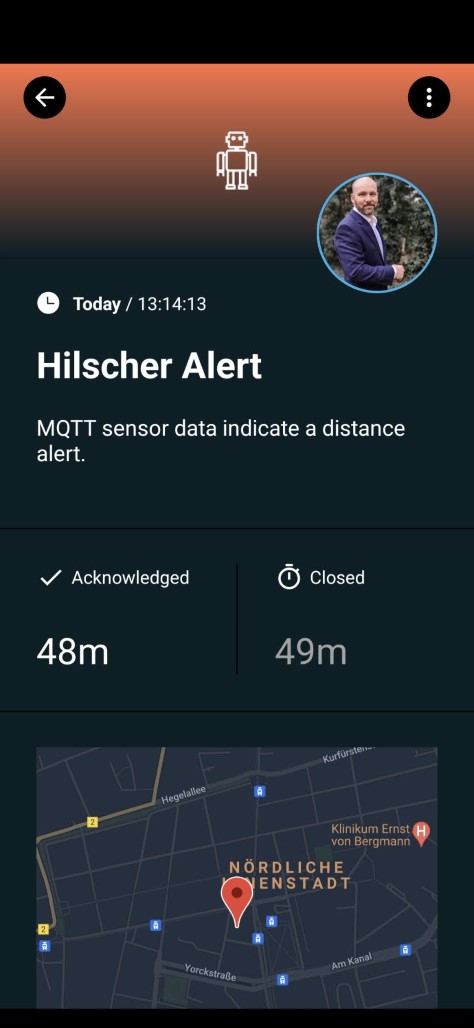

SIGNL4 can further increase the visibility of alerts through its Signals and Services section. Augmenting the color and icon of alerts will provide more relevant information at a glance without having to open the alert.
